CONSERVATION OF LINGNAN ANCESTRAL HALLS

Ancestral halls are the architectural expression of a salient social organisation in traditional Chinese society: kinship. Often standing as the most eye-catching and magnificent structure in older villages, ancestral halls are where all the ancestral tablets are worshipped daily, functioning as the central site for uniting the family. It is also the place for recording glorious feats within the clan and performing rituals during festive occasions. However, as time progresses, continued urbanisation and regeneration programmes have brought these important cultural treasures under immense pressure. Deterioration is fast and the need for conservation is imminent.

We had a conversation with Eric CM Lee (CM), LWK + PARTNERS Director and head of Heritage Conservation Team with over 20 years working in heritage study and conservation for historic buildings, who shared his extensive experience and insights on restoring Hong Kong’s Lingnan-style ancestral halls.

Eric CM Lee, Director and head of Heritage Conservation of LWK + PARTNERS

What is special about the architecture and design requirements of Hong Kong’s ancestral halls?

CM: Ancestral halls reflect the customs and architecture of a place. In Hong Kong, they are mainly divided into local and Hakka styles. Local ones are typically built with two-hall-three-bay layouts with one courtyard, or three-hall-three-bay layouts with two courtyards. For wealthier, more established clans, their buildings are larger and more extensively decorated. By contrast, Hakka ancestral halls are more flexible and dynamic in their layouts, with relatively smaller scale and simple, basic decorations.

1/4
1/4

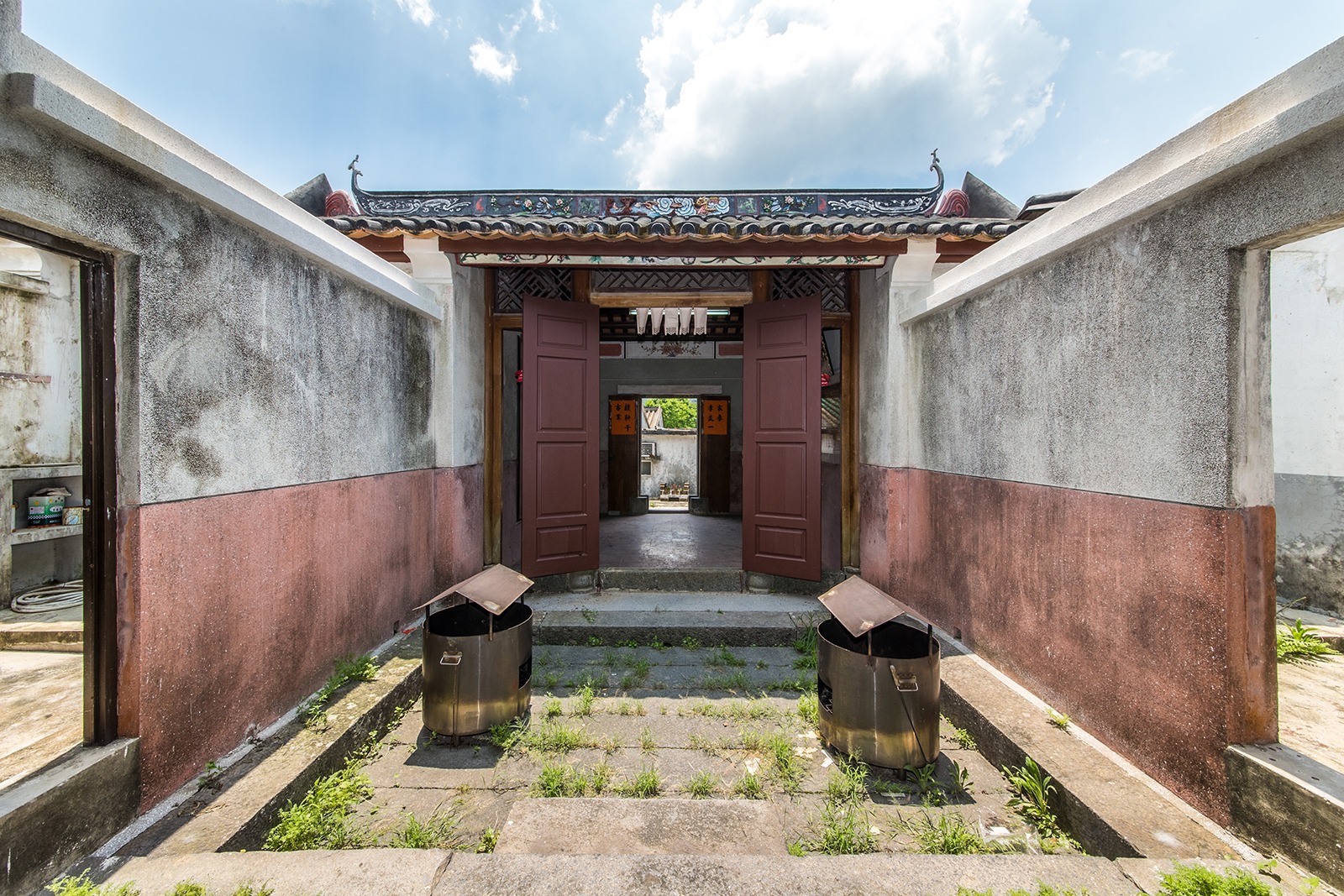

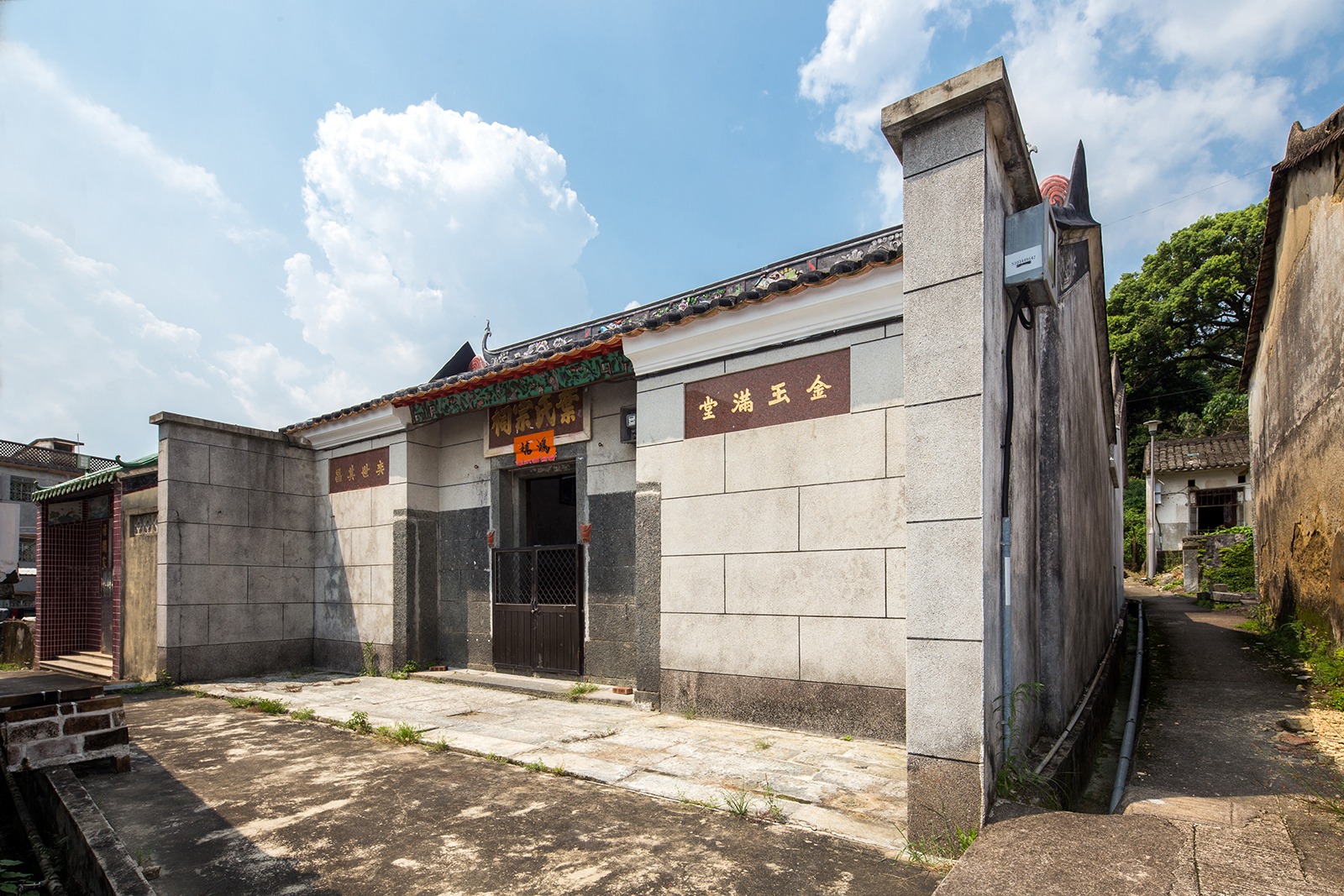

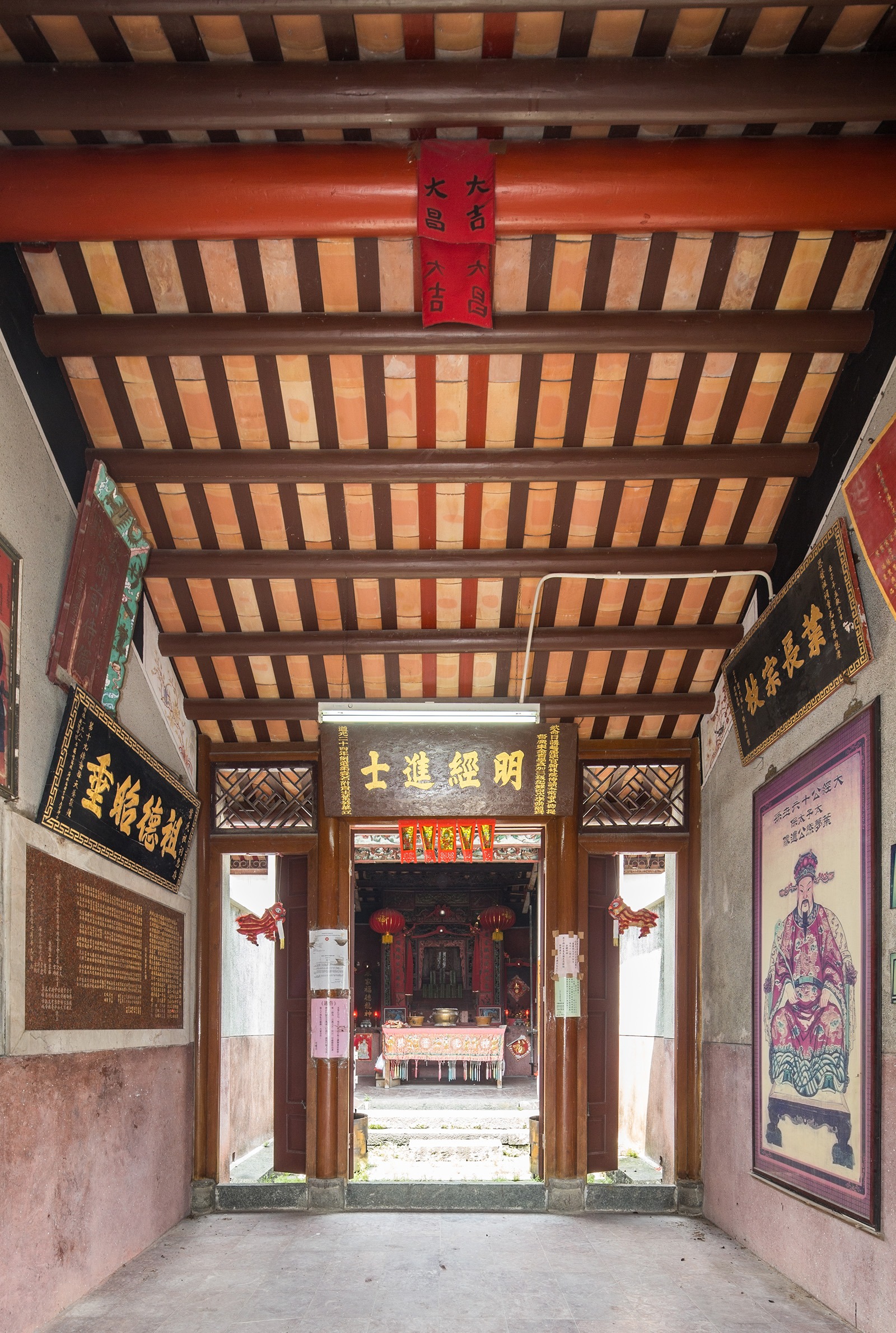

Ip Ancestral Hall, Hong Kong, China: Located in Sha Tau Kok’s Lin Ma Hang village, the building adopts a two-hall-one-bay layout.

Ancestral halls are symmetrically built to show ‘respect for the centre’. The most important spaces are located along the central axis with secondary spaces on both sides, while the left prevails over the right. For building materials, local ancestral halls are mainly built with grey bricks, wood and stone. The façade features grey brick walls and granite columns. As granite was seen as a valuable building material, it was used to draw attention to the façade. The building and materials of Hakka ancestral halls are relatively simple, mainly using grey bricks with rear halls clad in stone walls and rammed earth. Granite is only used in the main door frame.

1/4

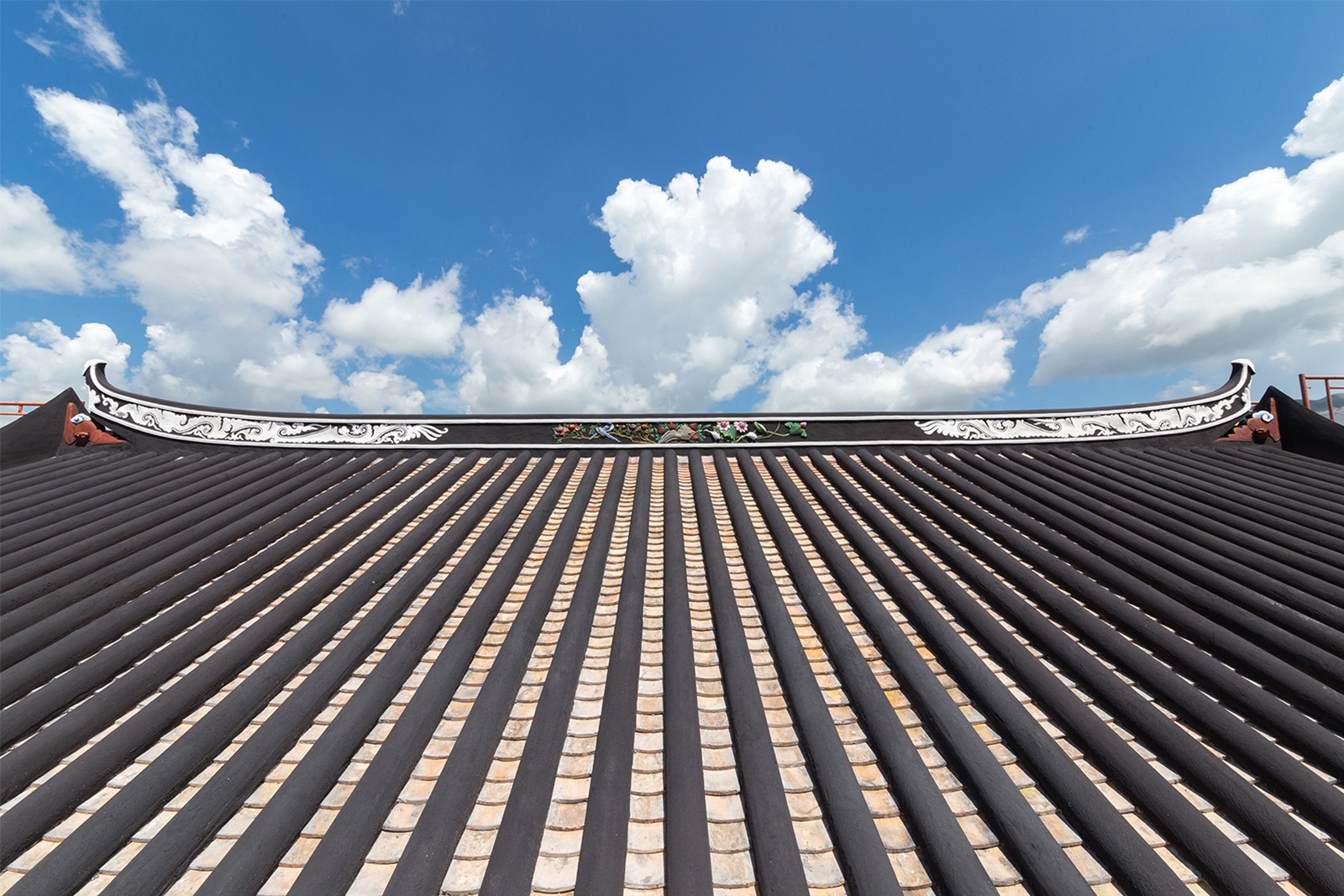

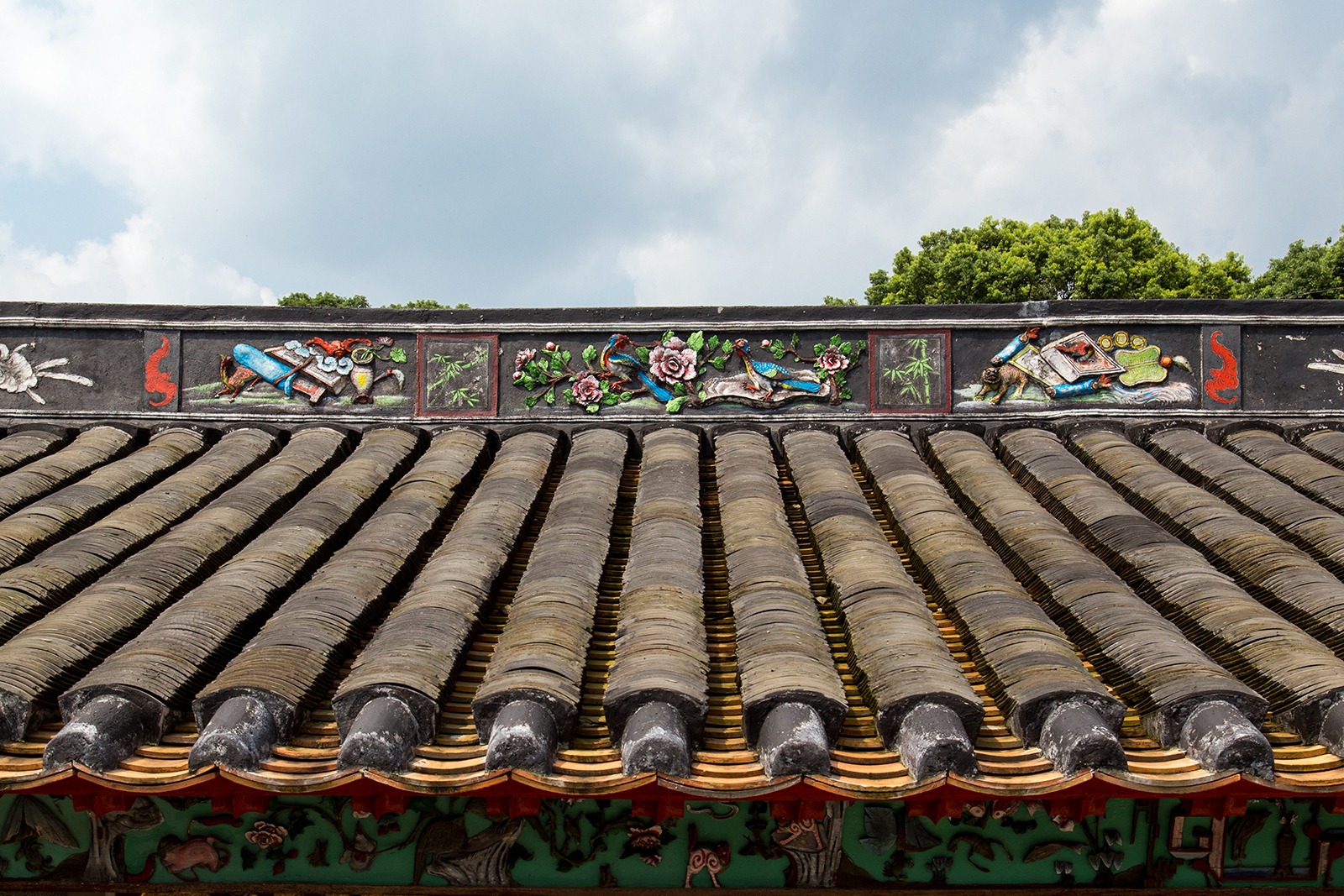

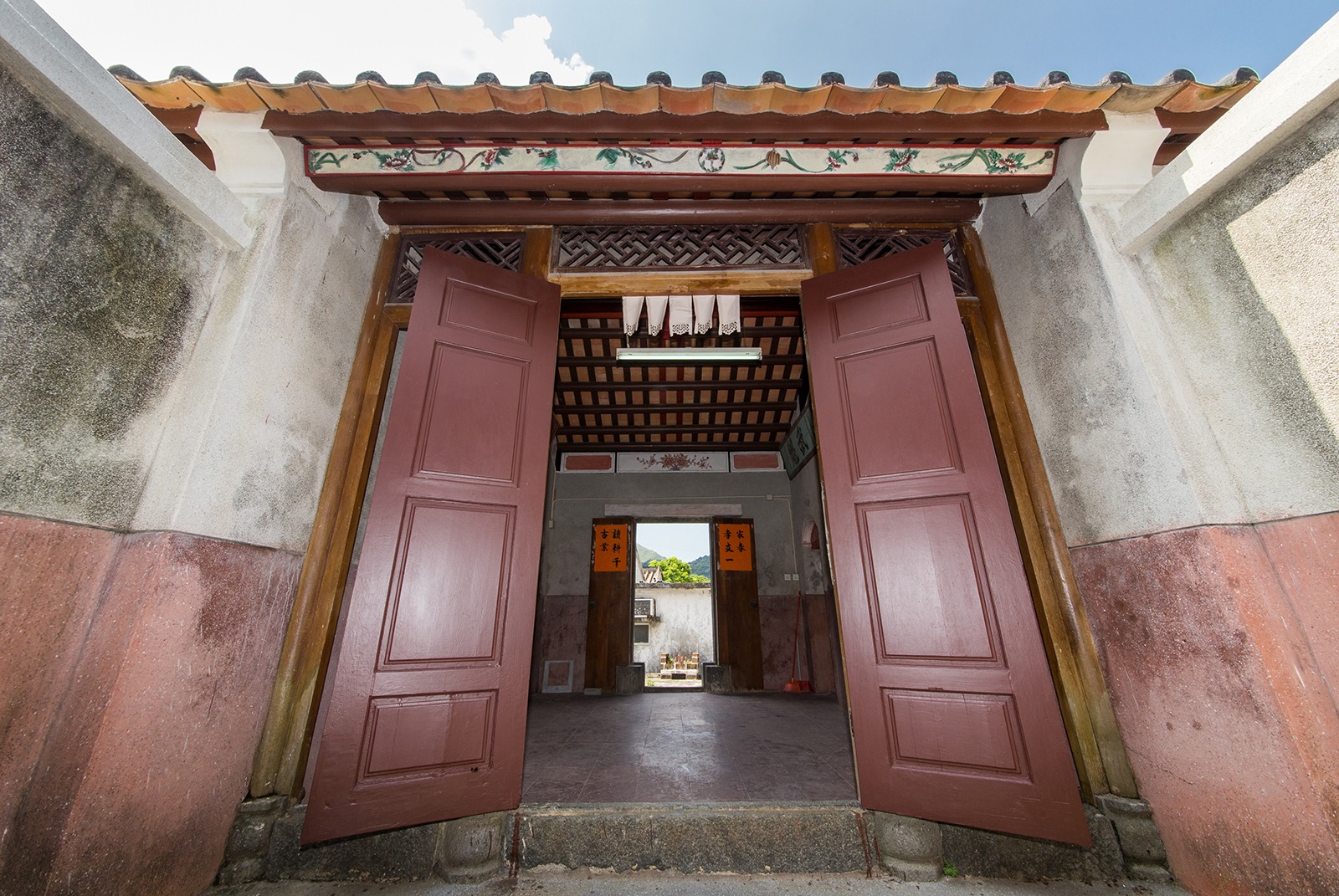

Ip Ancestral Hall, Hong Kong, China: LWK + PARTNERS is responsible for restoring the roof of the front hall, including the main ridge, gable ridges and fascia boards. The decayed timber cockloft was also restored to recreate the original design of dressed granite paved forecourt.

Ancestral halls are extensively adorned with symbolic wood carvings, murals, plaster mouldings and Shiwan ceramics reflecting the residents’ desire for a better life and cultivating moral ideas. These decorations represent various auspicious and moral concepts. Peony for prosperity, and peach for longevity, for example. Some are homophones – ‘deer’ and ‘heron’ are pronounced like ‘wealth’ while ‘bottle’ resembles ‘peace’ in Cantonese. Some decorations depict stories from Chinese opera, novels and history, with traditional moral concepts in their themes.

1/4

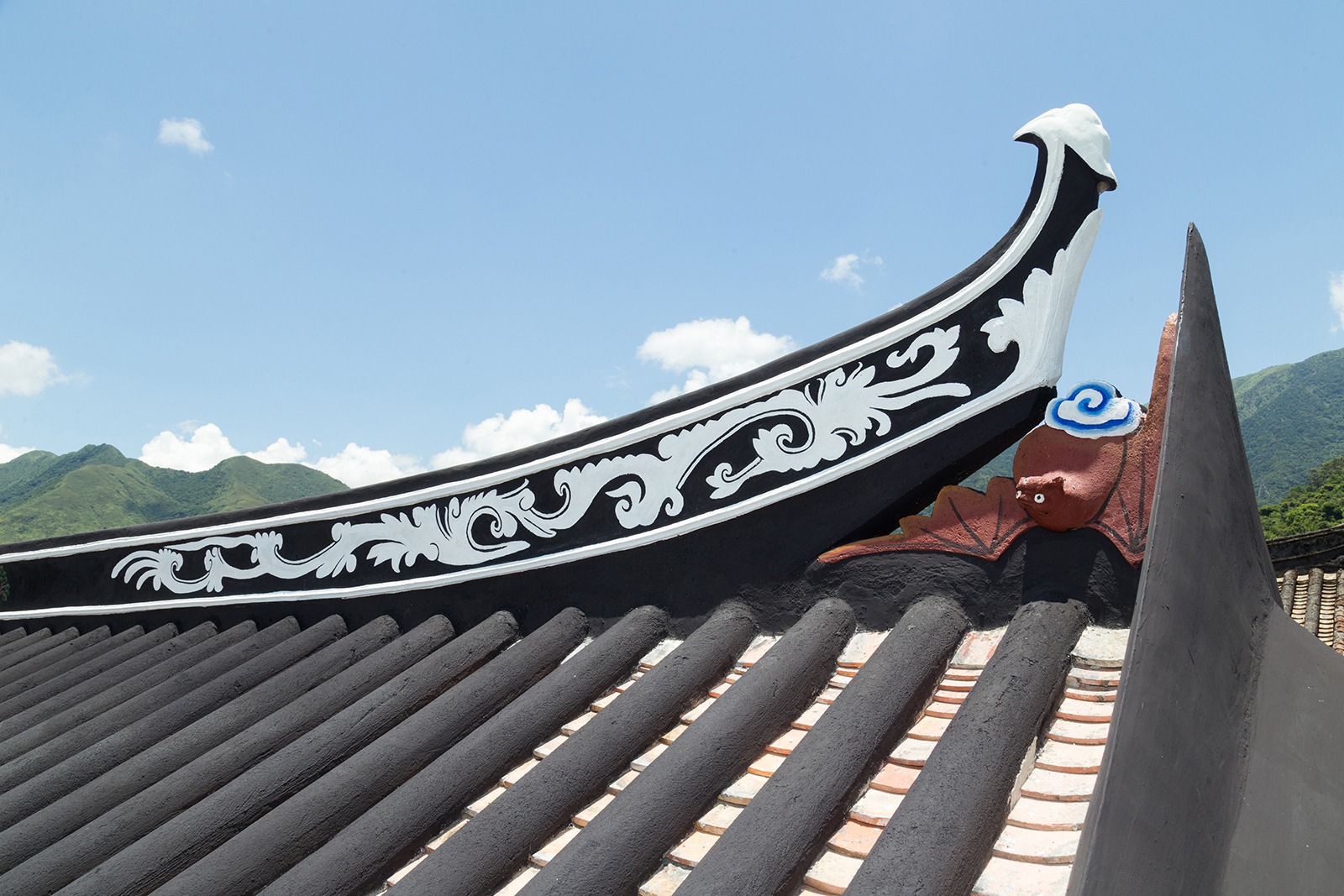

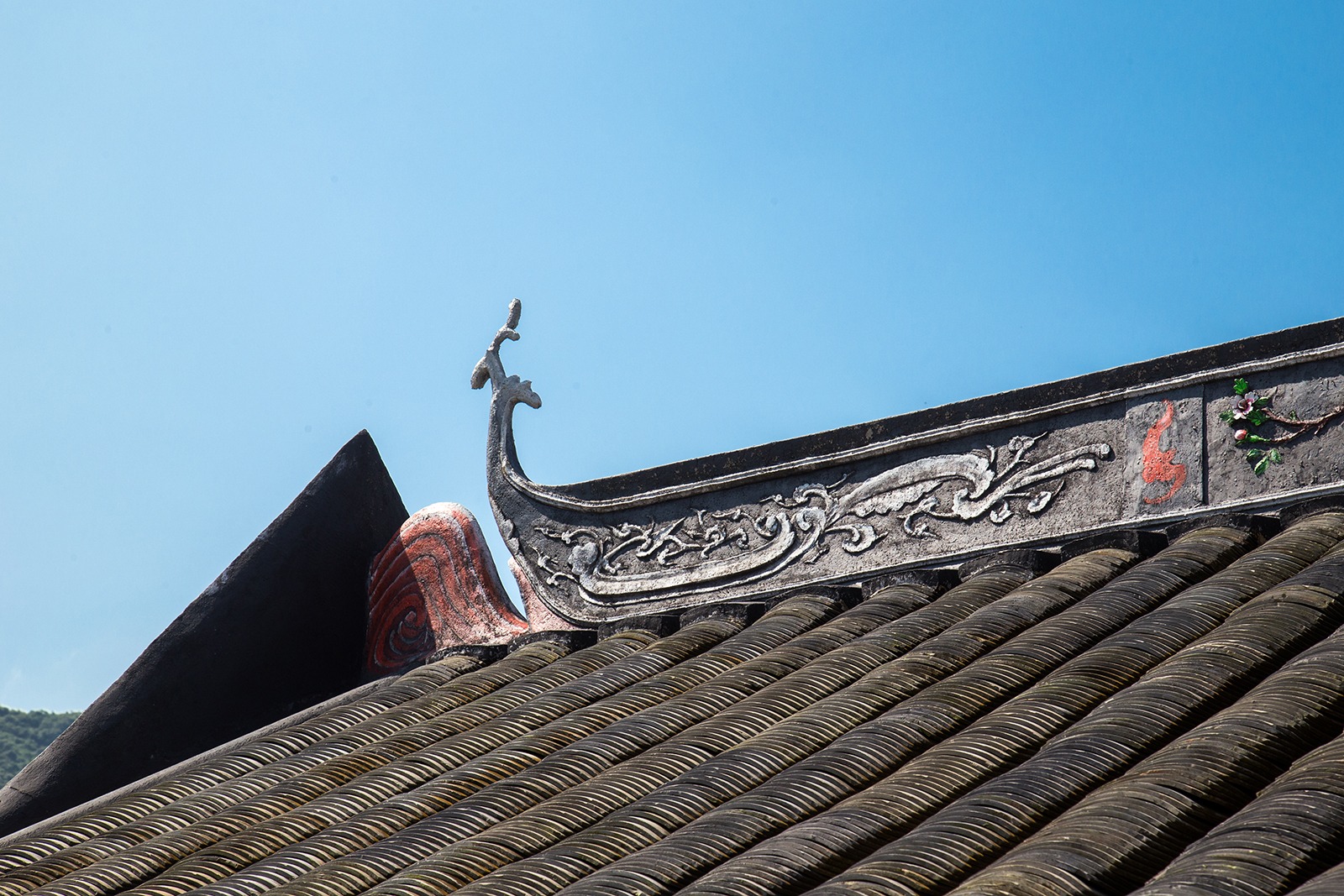

Ip Ancestral Hall, Hong Kong, China: The curled roof tips are lavishly decorated with bright-coloured plastered moulding ridges, accentuating the building’s solemn dignity.

What are the challenges of conserving / restoring these ancestral shrines? How to solve these difficulties?

CM: An important principle for restoring ancestral halls or old buildings is to use original building materials, techniques and designs as much as possible. However, since these buildings were built long time ago, some craftsmanship has been lost, and materials have been discontinued, especially with the decorations. For instance, Shiwan ceramics, which are commonly used in ancestral halls, are no longer produced in Hong Kong. We could only hire craftsmen in mainland China and have the works delivered to Hong Kong to be installed if needed. Another example is with the grey brick walls severely damaged by natural erosion, which would need large amounts of the original bricks. Local supply is limited and we had to source them from other villages in the New Territories. Unfortunately, it is complicated to find bricks with the matching size.

1/4
1/4

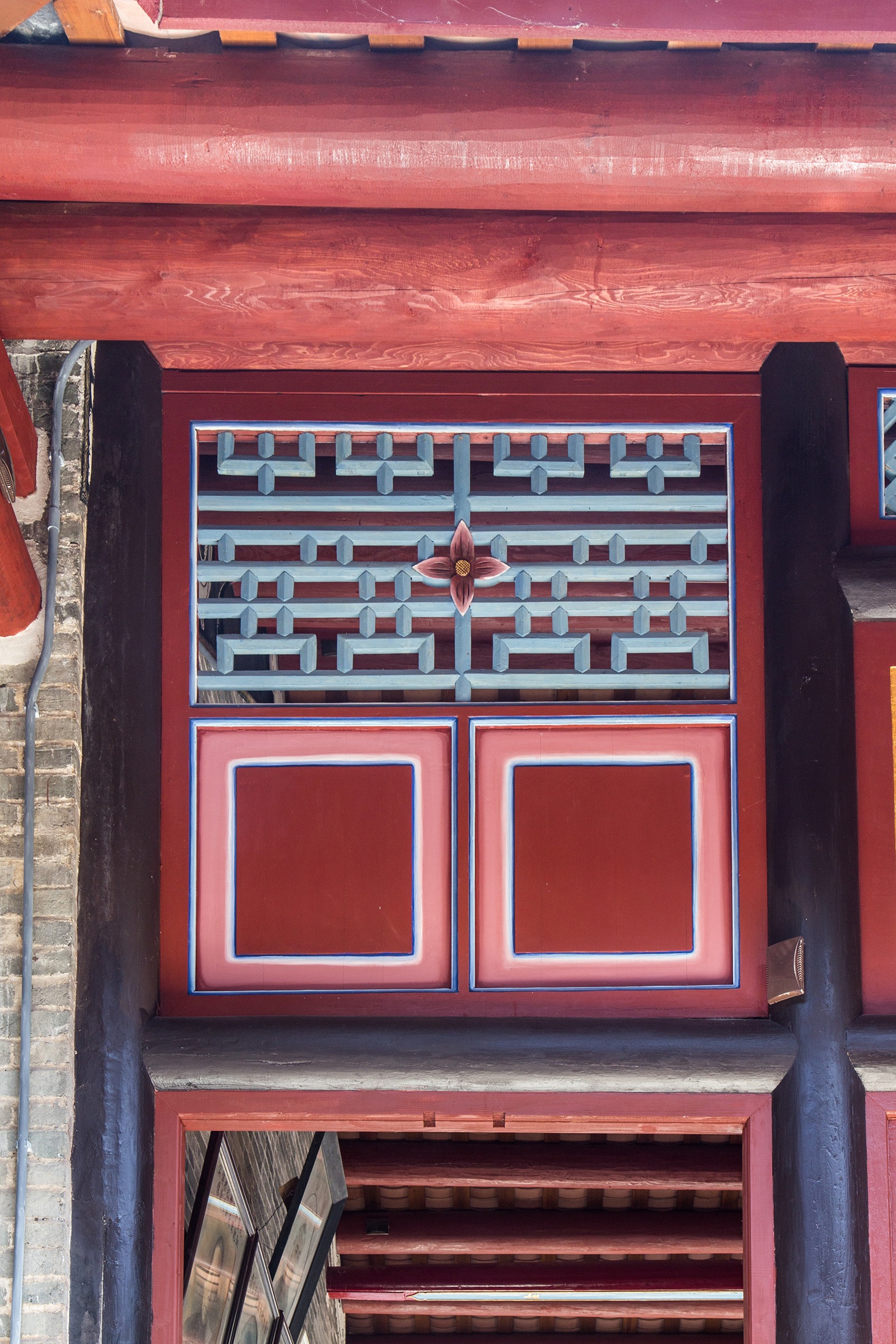

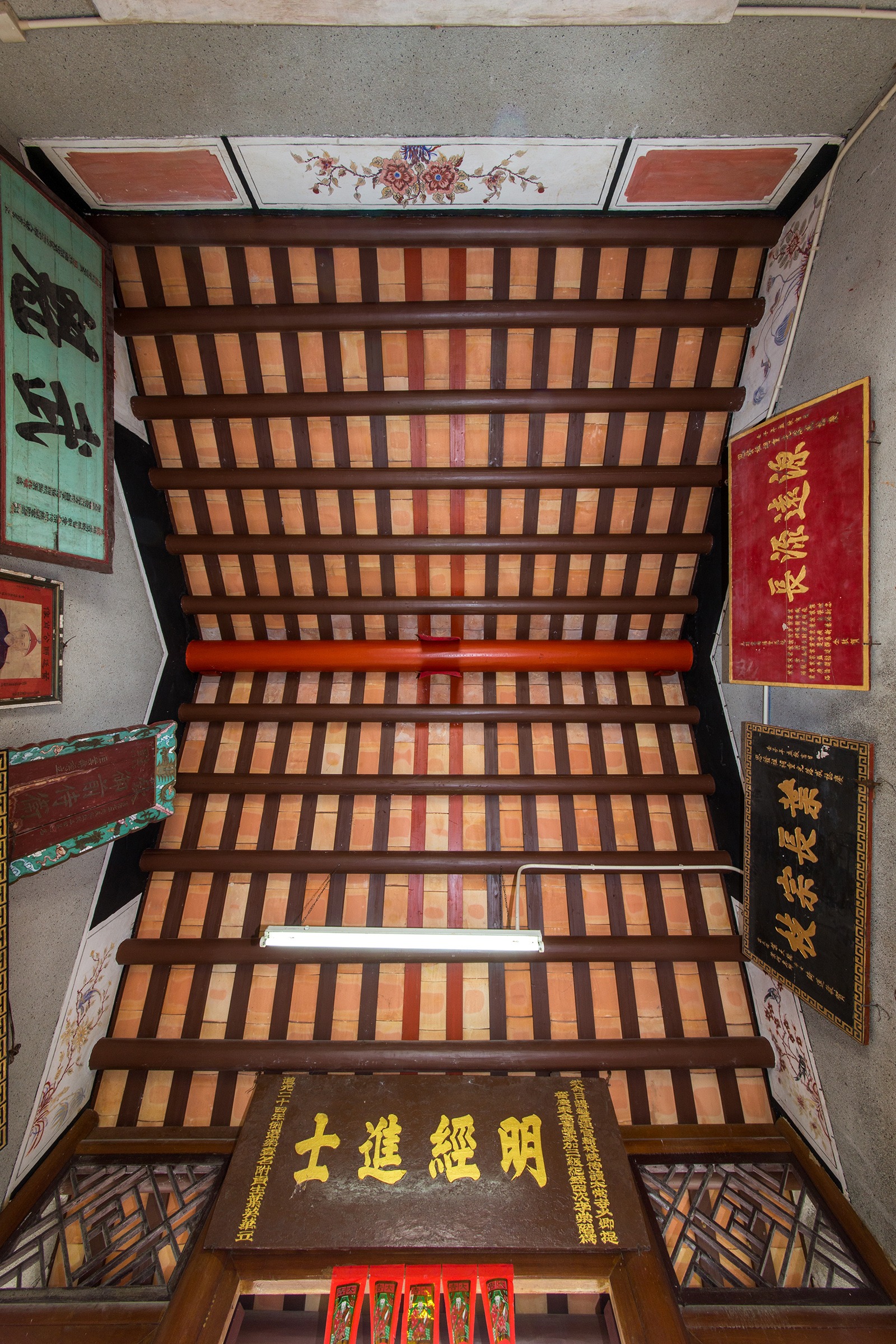

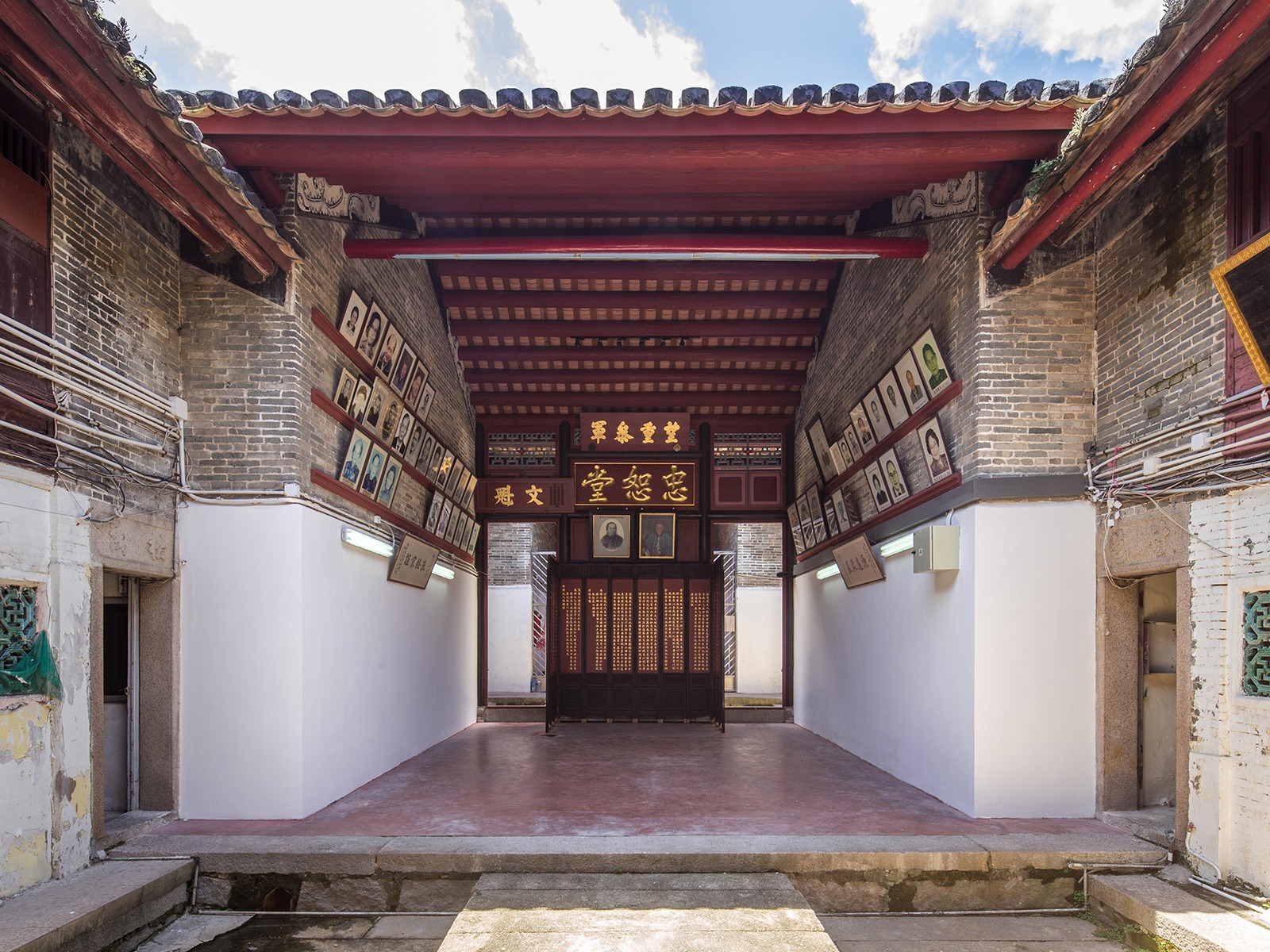

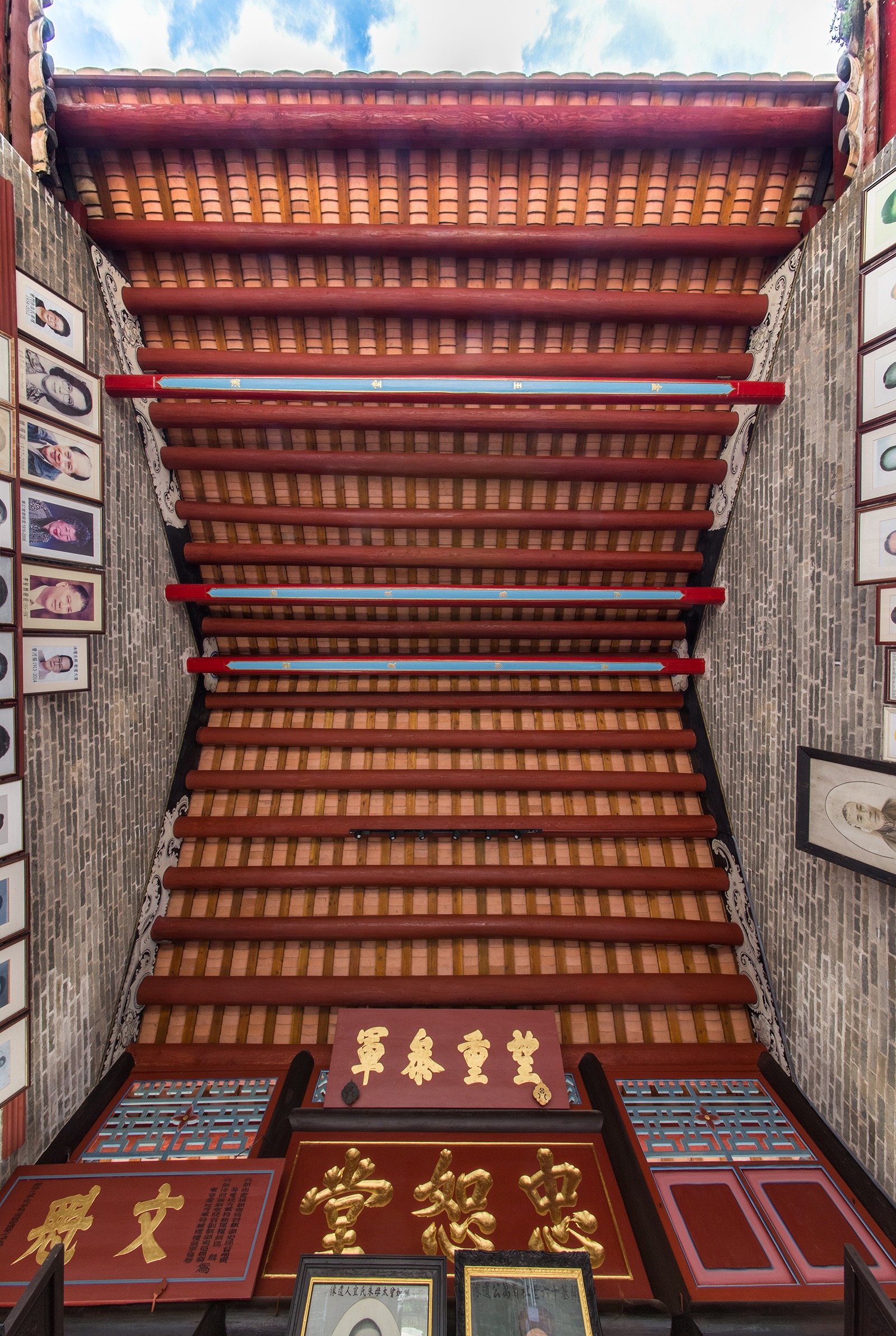

Ancestral Hall (Middle Hall) of Tsang Tai Uk, Hong Kong, China: The construction of Tsang Tai Uk started in 1847 following the Chinese traditional Wuhua fortified walled village layout. It was completed in 1867 after 20 years of construction. The ancestral hall adopted a three-hall design and sits on the central axis of the building cluster. LWK + PARTNERS renovated the Middle Hall and restored its decayed roof completely, solving leakages and termite infestation problems. By thoroughly restoring plaques, murals, screen doors, woodcrafts, ceremonial screens and walls on both sides, its past glory is once again reinstated.

Since most ancestral halls have not been properly documented or photographed, we can only make estimations about their original appearance based on oral history and do our best to find original materials as far as possible. We should also be extra cautious about adding new elements. Due to the high maintenance cost and various other reasons, the awareness of protecting historical architecture was weak in conventional society causing the lack of conservation efforts with ancestral halls.

1/4
1/4

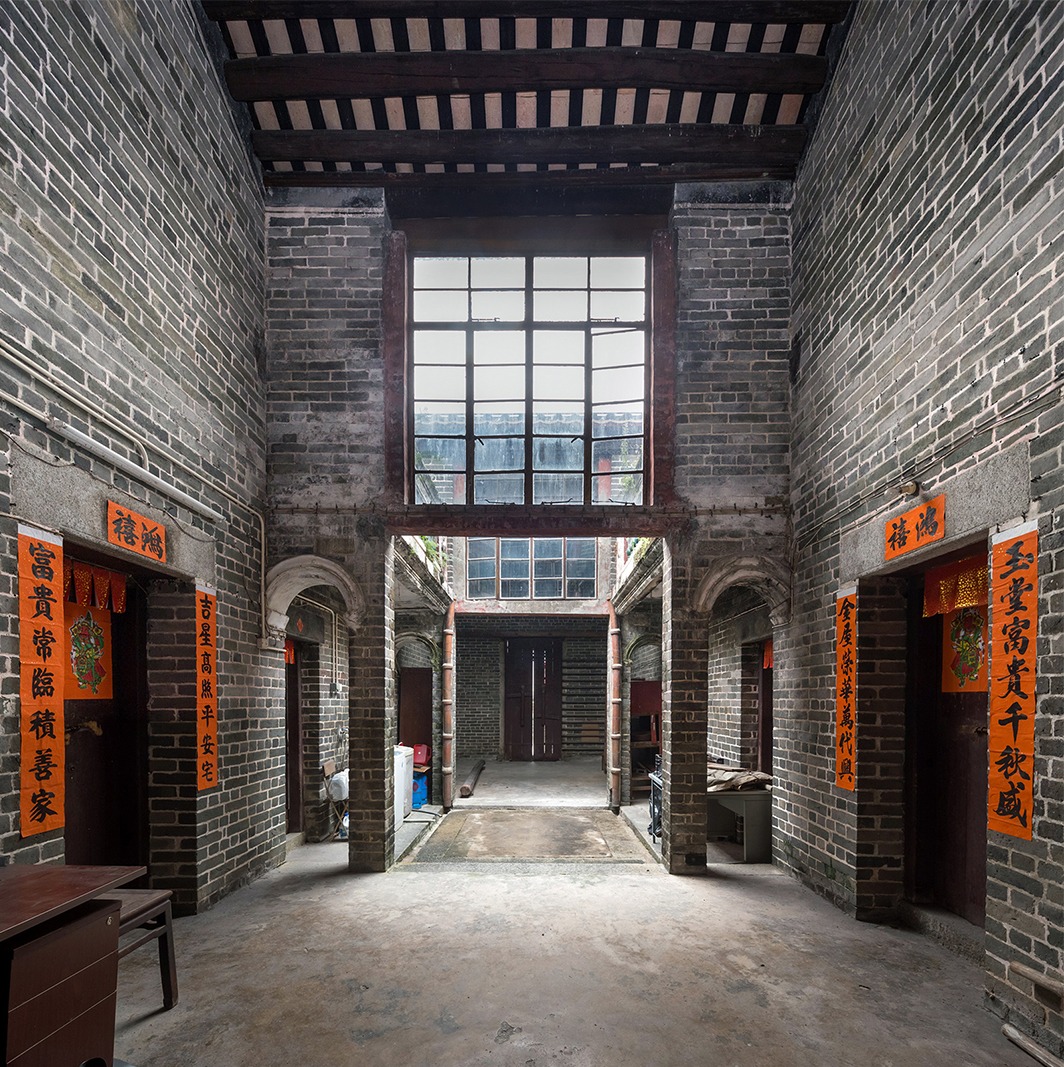

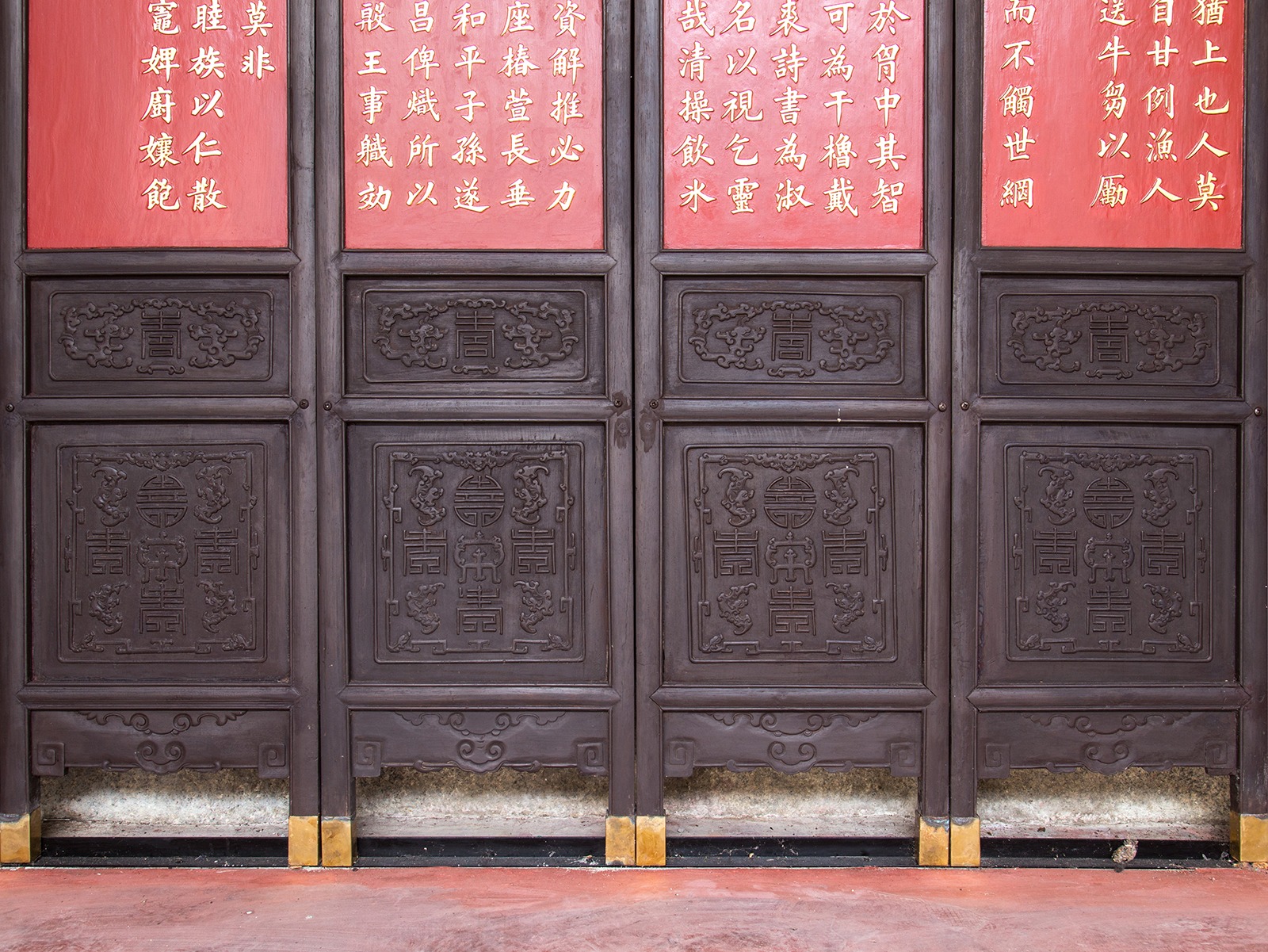

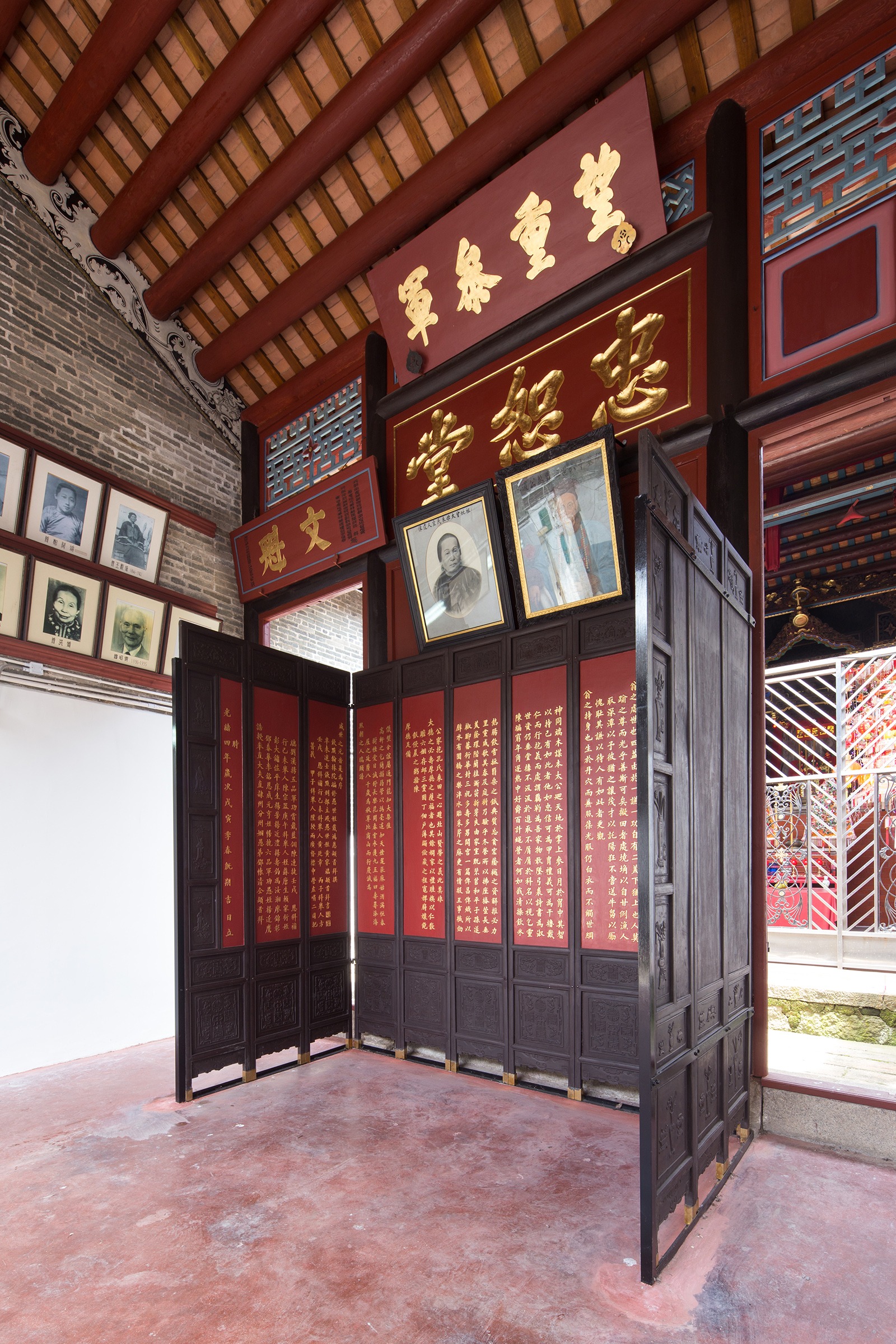

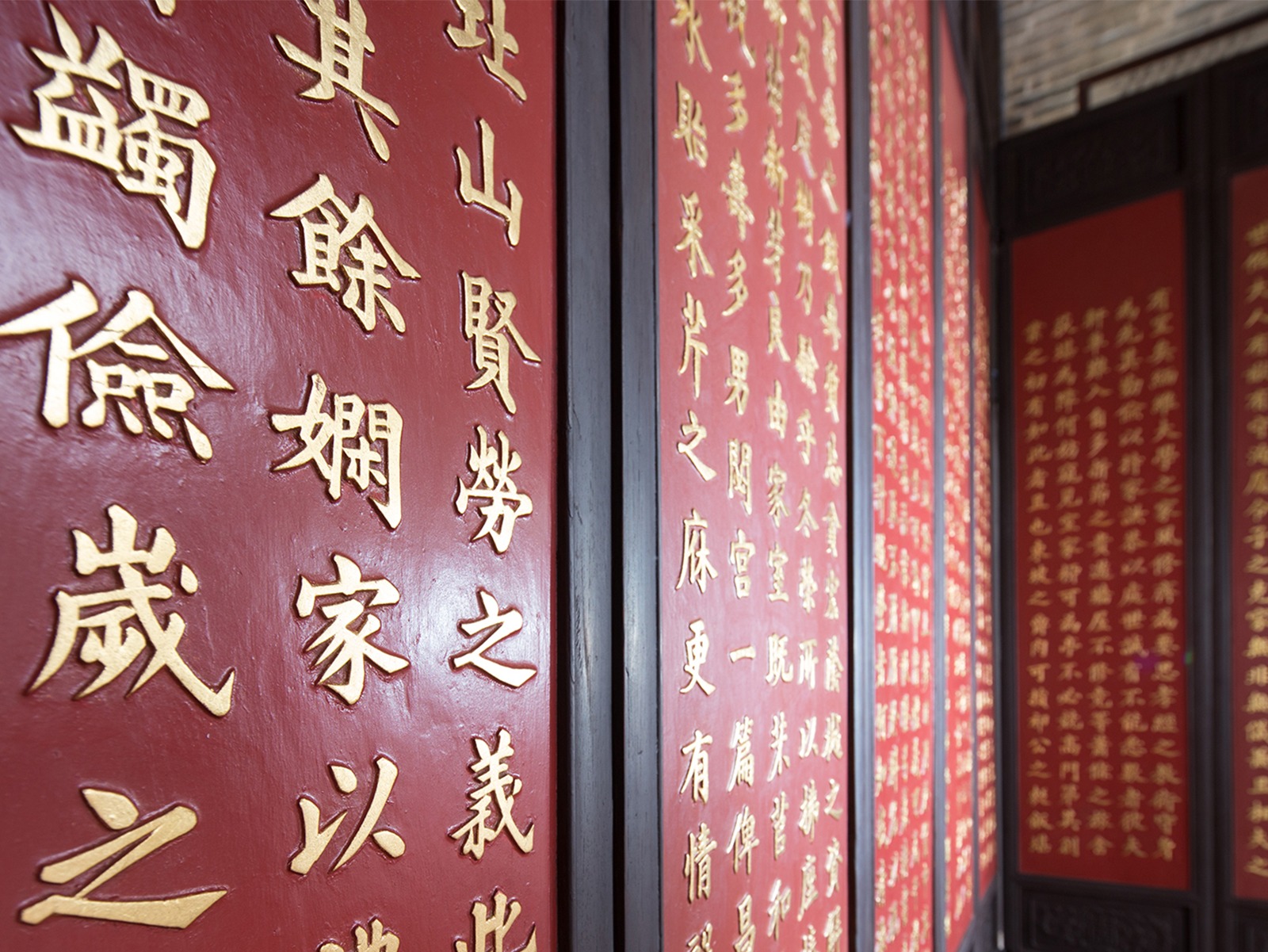

Ancestral Hall (Middle Hall) of Tsang Tai Uk, Hong Kong, China: The Middle Hall, where the clan held important discussions and celebratory ceremonies, contains a set of ceremonial screens of high historical value.

How important is conserving ancestral halls and other historical buildings?

CM: Historical buildings have witnessed the cultural development of a place and are valuable social assets for everyone. Conserving built heritage contributes to a city’s soft power and boost competitiveness. As part of society’s collective memory, historical buildings help people understand their past and cultural identity, reinforcing a sense of belonging among residents. This pushes society forward while creating significant socioeconomic value. Pure economic and urban developments are not enough. Society should take a proactive role to encourage the conservation, care and respect of historical buildings through integrated planning and regulations. In every city, new and old buildings should coexist in harmony, promoting diversity and sustainable development for a unique urban identity.

1/4
1/4

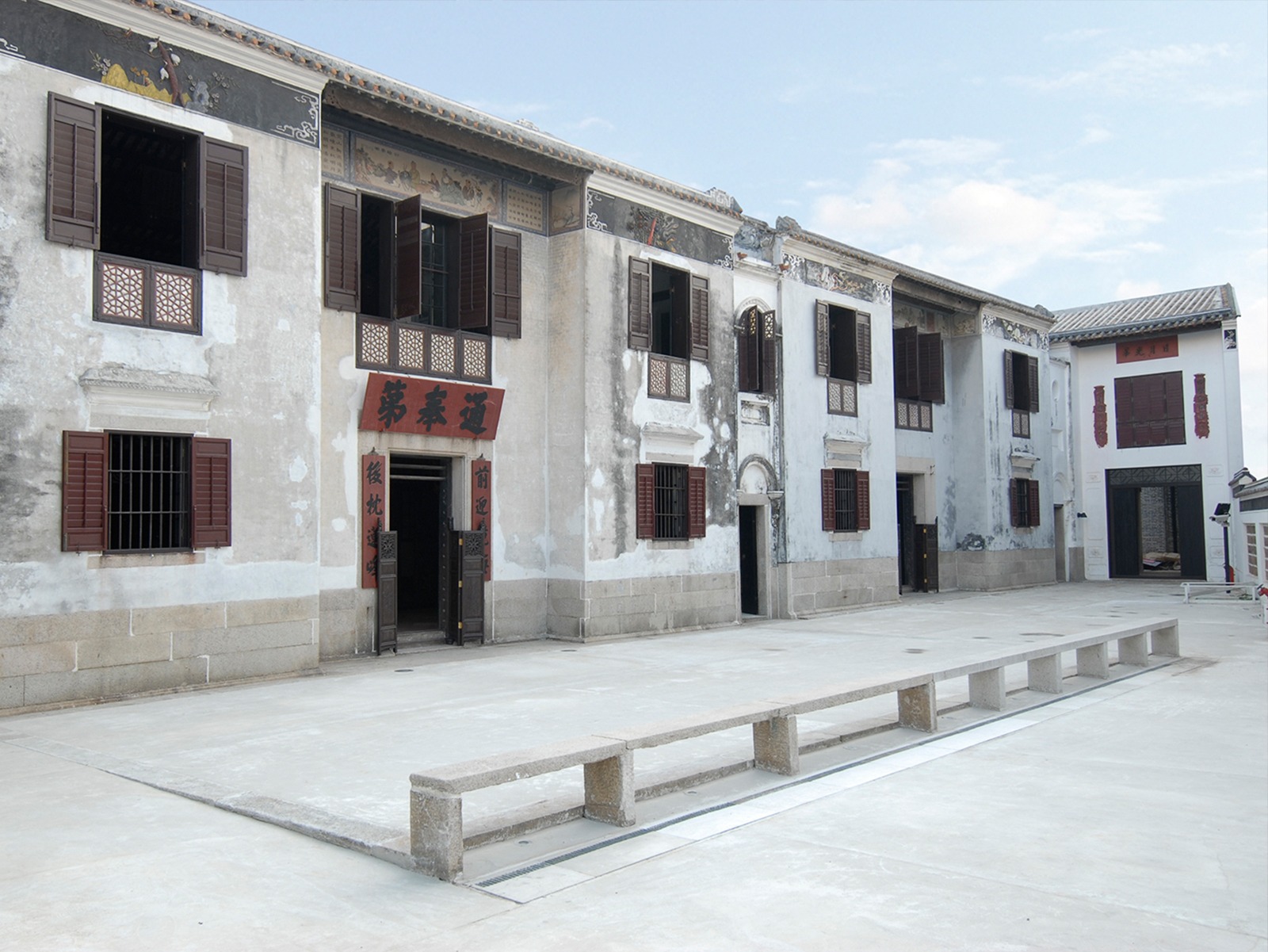

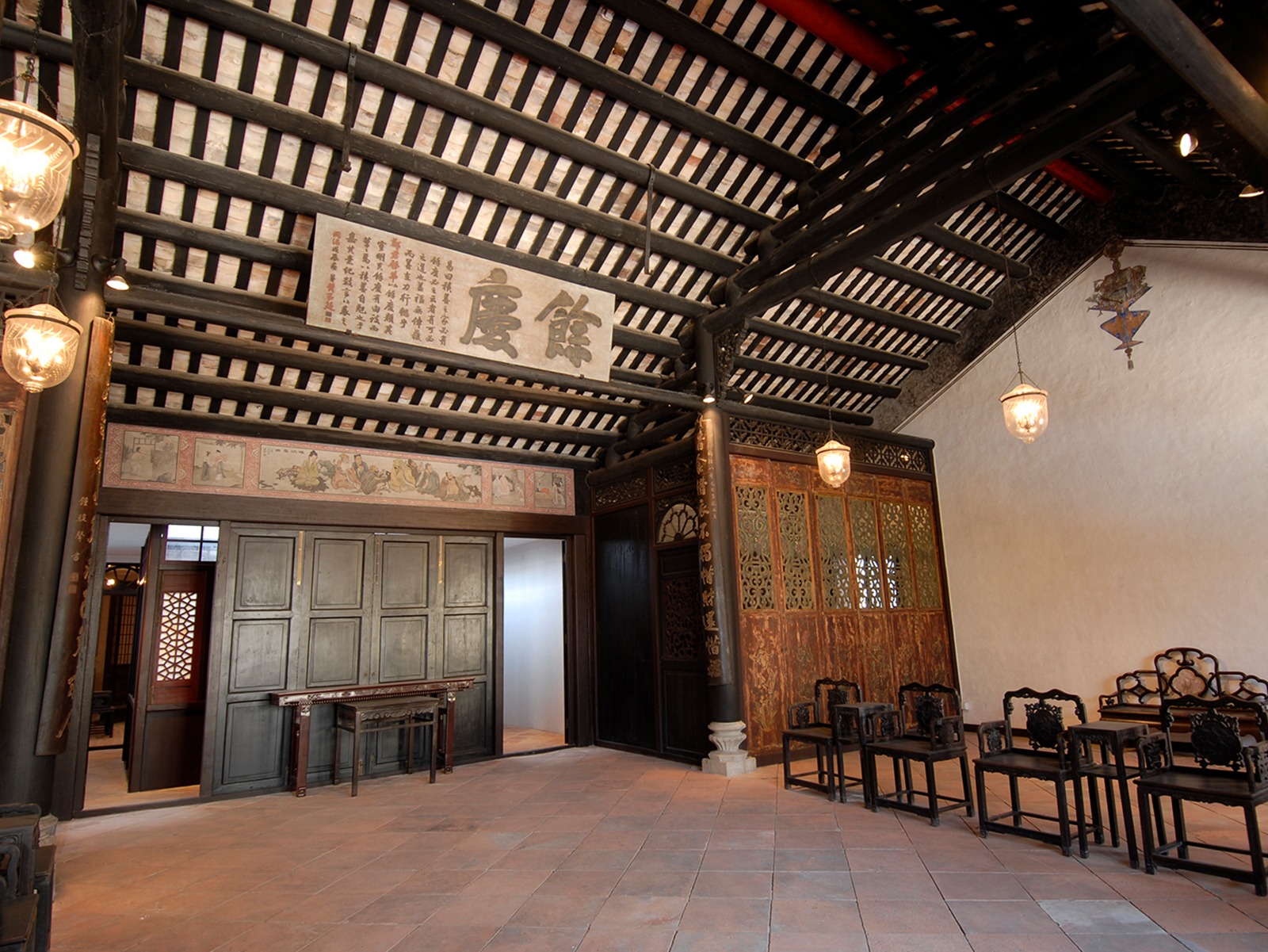

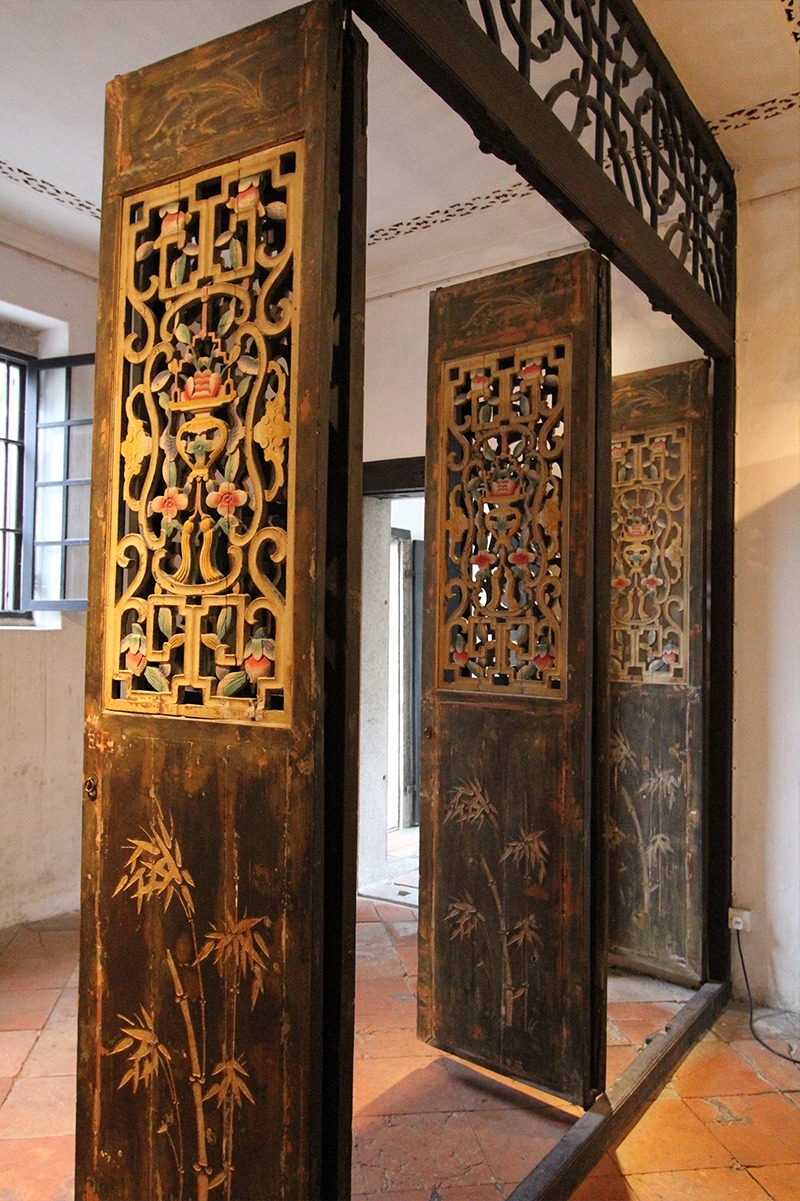

Mandarin's House, Macau, China: Mandarin's House is one of the most important cultural relics in The Historic Centre of Macao and was inscribed on the World Heritage List in 2005. Commissioned by The Department of Cultural Heritage in Macau, LWK + PARTNERS provided consulting services for cultural heritage management, including the creation of cultural relics records, publications, documentary videos and redesigning the guided tour.
1/4
1/4
1/4
1/4
1/4
1/4

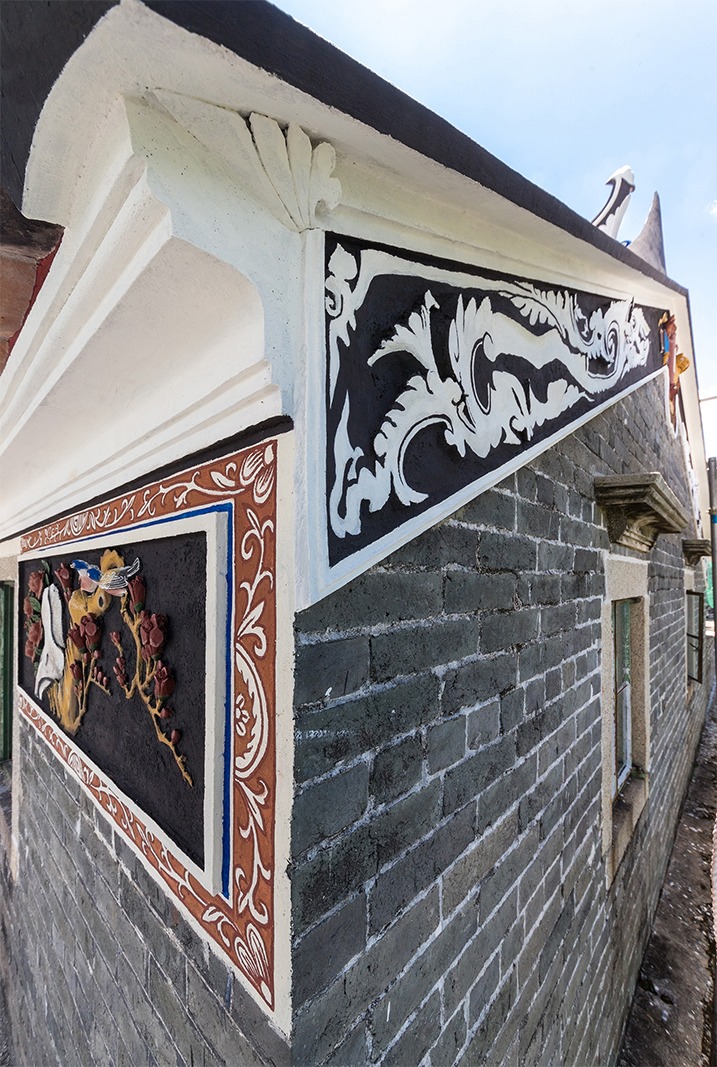

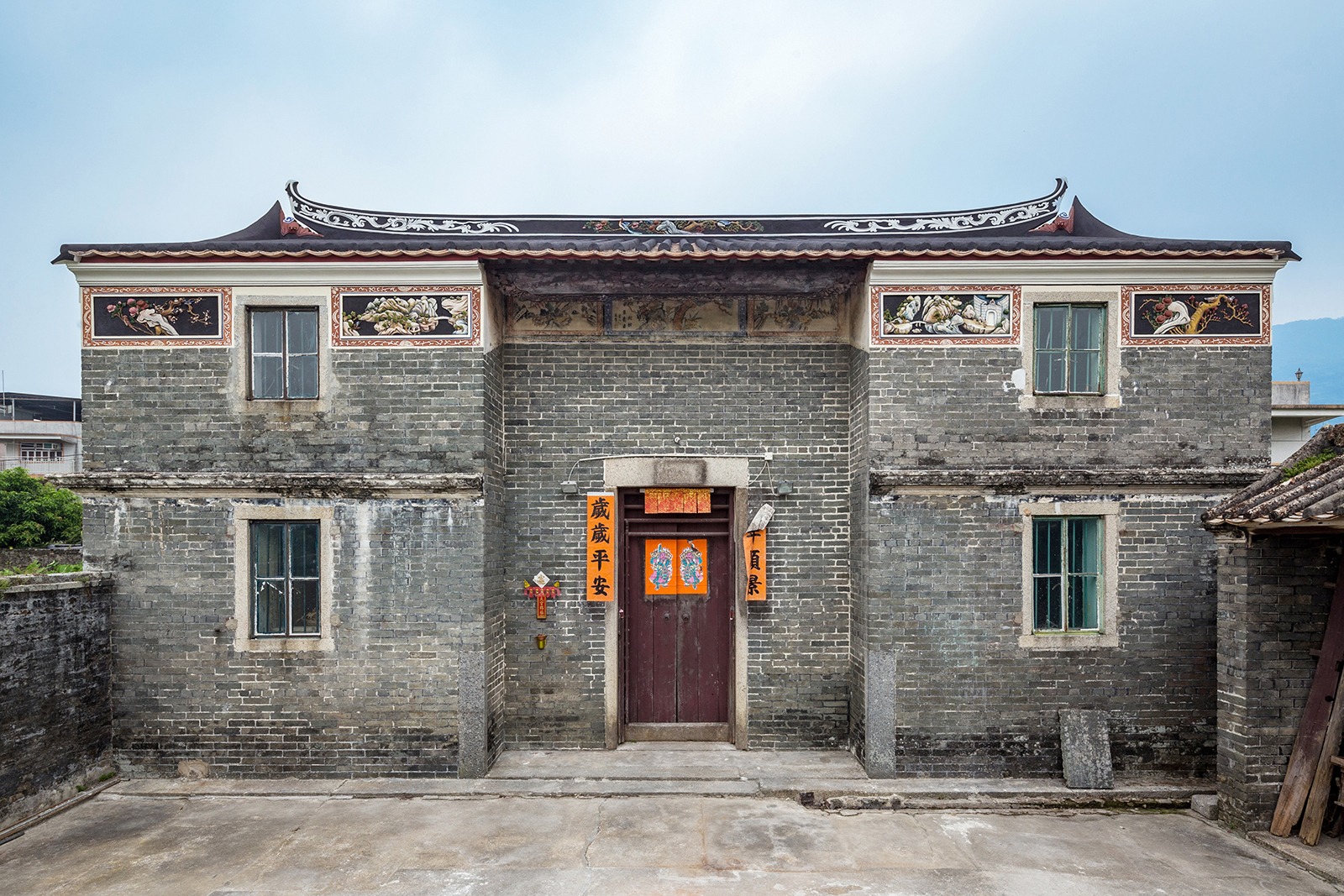

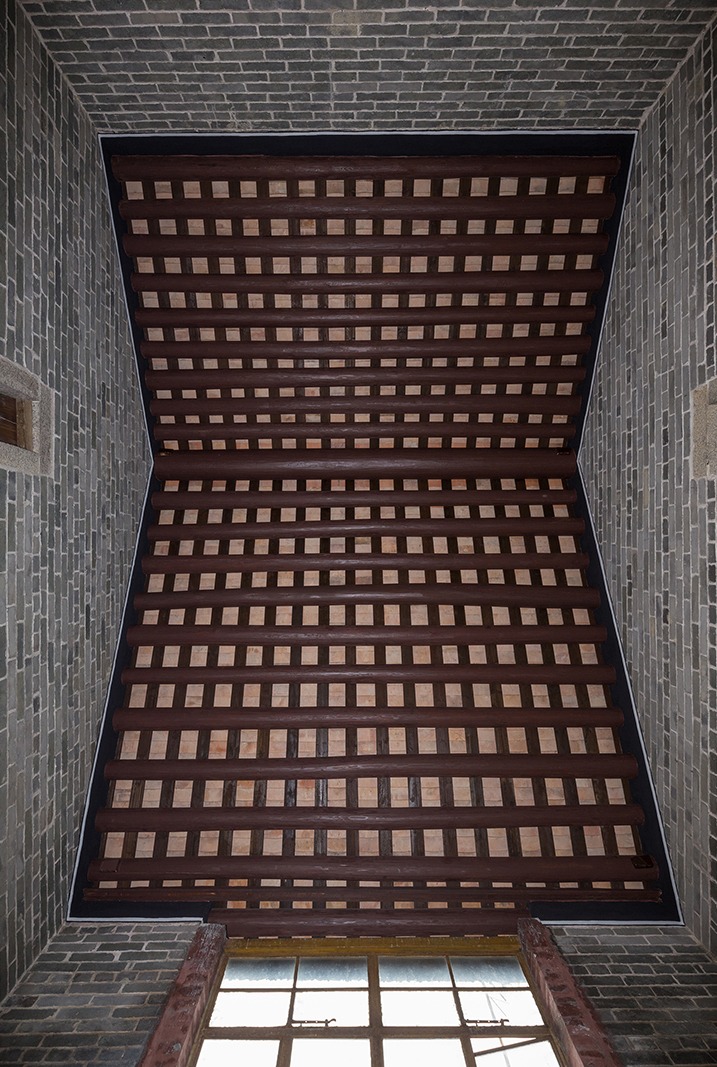

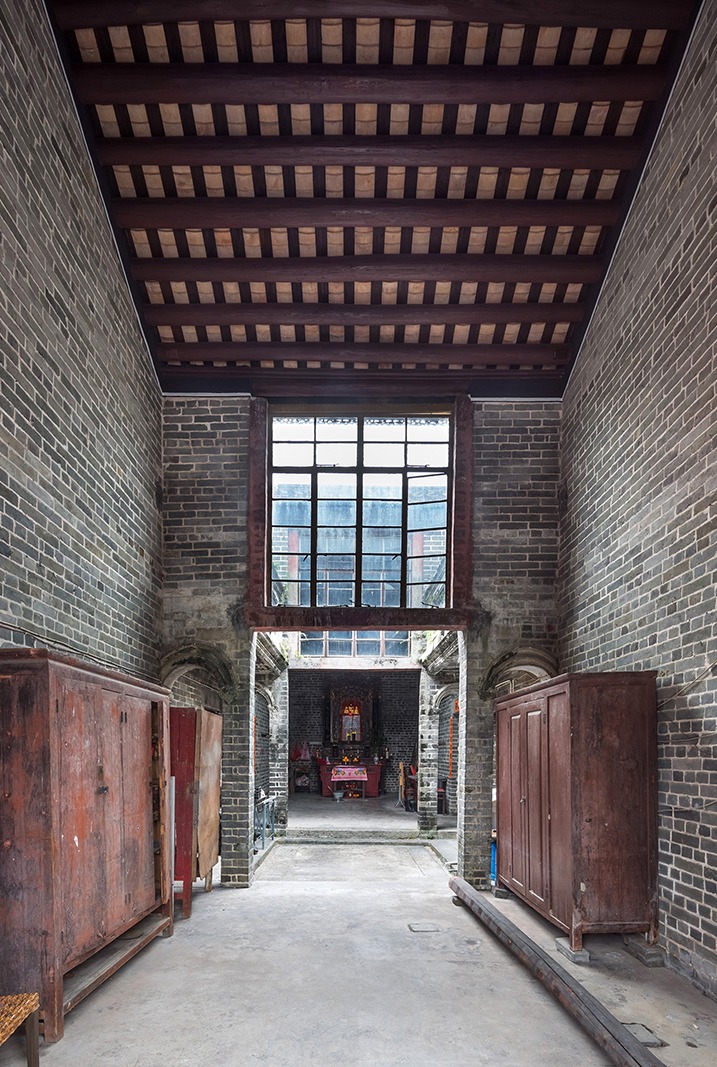

Lai Mansion, Hong Kong, China: Located at Sheung Tsuen, Pat Heung, in Yuen Long, the Lai Mansion uses brickworks and timber of high quality, with continuous balconies built of reinforced concrete slabs. LWK + PARTNERS restored the Chinese pitched roof of the entrance hall while the original external wall was preserved to reflect the glory of this historical monument. The main ridge, two gable ridges, two fascia boards and plaster mouldings were repaired to preserve and restore its traditional Chinese architectural characteristics. This project also provides dental replacement to damaged bricks under the cornice to ensure that water tightness of the wall can be reinstated while termite eradication and baiting system were implemented in the repaired parts.
